Multiple Inheritance

• Consider a character type for a RPG.
• Note the examples here will be limited in functionality to maintain clarity.
  • In this case, the base class, PersonT, will contain all of the data.
  • This will be limited to name, current Hp and Max Hp.
• I would like to build an person class.
  • This will be an abstract base class.
  • It will have methods to
    • Observe, and Modify hp statistics.
    • Observe the name.
    • Speak
    • And a pure virtual method to fight.

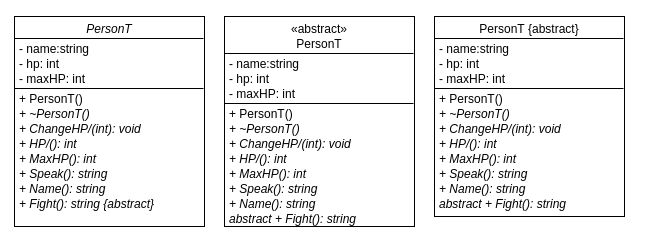

  • The UML
    • There seem to be multiple ways to mark a class as abstract
      • Place the title in italics.
      • Place << abstract>> in the title.
      • Place {abstract} after the name.
    • Virtual Methods are marked in italics.
    • And you can add abstract before the method in a pure virtual function.
      • This is discussed in my UML book, but no examples are given.
      • And I can't find any examples in any of my other books.
      • I think you could also put {abstract} after the name.
    • Italics seems to be the winner with not notation for pure virtual methods.
    •
  • PlayerT.h
  • PlayerT.cpp
• I would like to derive both fighter and wizard classes.
  • For now, Ignore the commented out code in these classes.
  • The fighter
    • The fighter starts with 10hp max.
    • They also have the title "Sir" appended to their name
    • They only take 1/2 damage
    • When they fight, they "Whomp" for d10 damage.
    • Oh, they have a have a special method, Workout.
    • FighterT.h
    • FighterT.cpp
  • The wizard
    • Starts with 6hp max.
    • Have the title "Zapper" appended to their name.
    • No special considerations for damage.
    • But when they fight, they "Zap" for d4+2
    • When they speak, they have a phrase of 30 random characters with random spaces inserted.
    • They have a special method, Study
    • WizardT.h
    • WizardT.cpp
  •

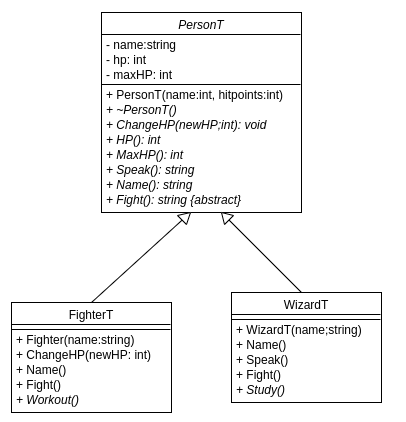

  • There should be nothing new here except for the UML.
  • I added a peasant class as well.
    • PesantT.h
    • PesantT.cpp
    • main.cpp
• I would now like to add a BattleMage
  • This class inherits from both the Fighter class and the Wizard Class.
  •
  • This is called Multiple Inheritance.
    • It is a good thing
      • You can gain attributes from both parent classes.
    • It is a bad thing
      • Real problems with ambiguity.
  • Let's add the class and see the problem.
  • The Battle Mage
    • Overrides ChangeHP, It only takes 3/4 damage.
    • Overrides the name, title: Battlecaster
    • Overrides speak, it speaks like a wizard, but only 1/2 of the message.
    • Overrides Fight, it acts as a fighter 1/2 of the time and a wizard 1/2 of the time.
  • We can inherit from multiple classes
    • class BattleMageT: public FighterT, public WizardT {
  • BattleMageT.h
  • BattleMageT.cpp
• The problem is, the code will not compile

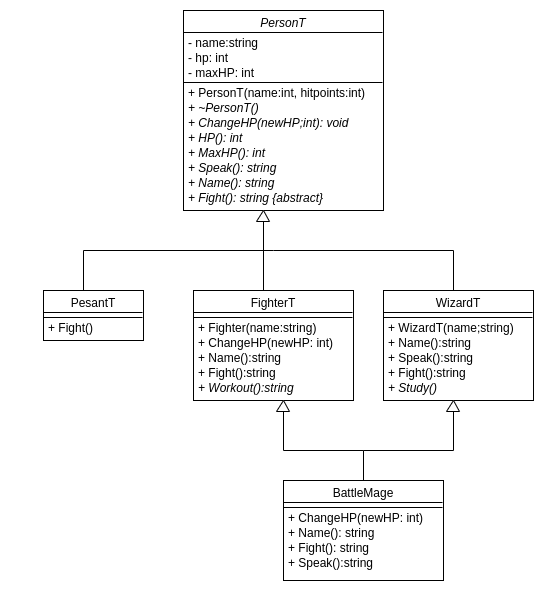

  • First of all, we need to understand what is happening in our inheritance model.
    • This is the "diamond" problem.
    • The Wizard brings in a PlayerT
    • The Fighter also brings in a PlayerT.
    • C++ Solves this by brining in two PlayerT's
    • And we are unable to determine which version of HP() to call
      • Along with all of the other things we get from PlayerT.
  • This can be overcome with Virtual Base Classes
    • class WizardT: public virtual PlayerT
    • This forces the end objects to only have one instance of the base class.
    • As long as it is specified as a virtual base class each time.
• The second problem is constructors.
  • Stroustrup states "The constructor of the base class is called from the constructor of the most derived class."
    • So I call the PlayerT constructor in the BattleMageT ctor-initializer.
    • The other constructors are called as well, but they do NOT call the constructor for the PlayerT.
• Take a look at bad1.cpp and bad2.cpp
• There is apparently a debate in the programming community if multiple inheritance should be used.
  • Some languages don't allow it.
• Meyers' Discussion on multiple inheritance
  • It is very easy to have ambiguity in names.
    • He states that you can do id.ClassNameT::FunctionName()
  • He says "from the viewpoint of correct behavior, public inheritance should always be virtual"
    • But this causes the objects to be bigger
    • And code to run slower.
  • He is also unhappy that the most derived class is responsible for constructing the virtual bases (both direct and indirect)
    • This is not "clean"
  • He suggests
    • Don't use virtual base classes.
    • If you must use them, don't put data in them.
  • In the end, he says to use multiple inheritance if you need it but it will make your code more complex.
• Gregorie is sort of non-committal
  • He says you should decide for yourself i multipl inheritance is good.
