A Wombat Performance Simulation

• I would like to build a spreadsheet to model WOMBAT.
• First build a table of the basic components of the machine and their time.
  • Use an abbreviation for each unit (ALU, BUS, CU, MEM, REG)
  • REG is for all registers, assume the load time is the same.
  • BUS is the time to put something on the bus
  • ALU is just the performance for + and -, we may expand this later.
  • This list needs to be ascending for what we will do later.
  •
• I will group the instructions into classes
  • Class I, read/write
  • Class II, load/store
  • Class III, Math instructions
  • Class IV ADDI
  • Class V Jump
  • Class VI conditional jump
  • Class VII Indirect instructions
• One a second worksheet, I want to compute the time for each class of instruction.
  • Start with FETCH, this is not an instruction but a common computation
    • Fetch requires the following steps:
      • BUS ← PC (BUS)
      • MAR ← BUS (REG)
      • MDR ← M[MAR] (MEM)
      • BUS ← MDR (BUS)
      • IR ← BUS (REG)

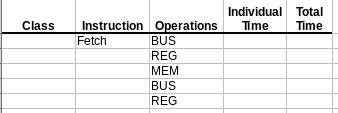

    • So I set up the following table:
    •
    • Filling in the individual time i used the vlookup function
      • This will find a value in a table.
      • In this case, look for the time from the previous table.
      • Index by the Operation name
      • And return the second column.
      • =vlookup(C5, Main.A$2:B$6,2)

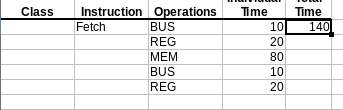

      • Drag this down to the other cells to look up all of the times.
      • Finally total all of these with the sum function sum(d5:d9)
      •
    • Do the same for the decode portion of the cycle.
      •
    • Compute the time for class I
      • Just the execute portion
      • BUS, REG (or REG, BUS) but this does not matter)
      • Remember to add the Fetch and Decode stages into the total
      •
    • Repeat for all other classes of instruction.
      •
  • Copy the values (as a =cell) from the work sheet back to the main sheet.
    •
  • Calculate cycles per instruction
    • In a cell label and place the period of the clock.
    • I will use 100, but we will change this.
    • Add a cycles column to the table.
    • Instructions must take a whole number of cycles
    • =roundup(time/clocklength)
    • Add a column to compute the unused portion of the clock
    • =roundup(cycles*clocklength-time)
    •
    • Note, this step is somewhat unrealistic, as we need to be more careful where we break the clock cycle, but it will do for now.
  • The performance of a program.
    • The next thing we need to add is how many times each instruction is used in a program.
      • This will depend on several things.
        • The task to be performed
        • The instructions selected by the programmer/compiler/assembler/...
      • For now, I will make up an instruction mix
        • We could gather a better mix using a simulator.
      •

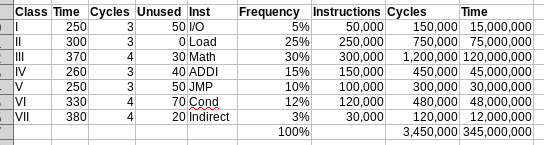

    • Next compute the number of instructions used for each class
      • Add a constant that represents the number of instructions in the program.
      • And multiply this by the frequency for each class.
      • Compute the cycles by multiplying the frequency by the cycles for each class
      • And compute the time by multiplying the cycles by the clock rate.
      •
    • Find the total time, and convert this to seconds (divide by ns/sec)
    • Find the clock rate and convert this to MHz.
    •

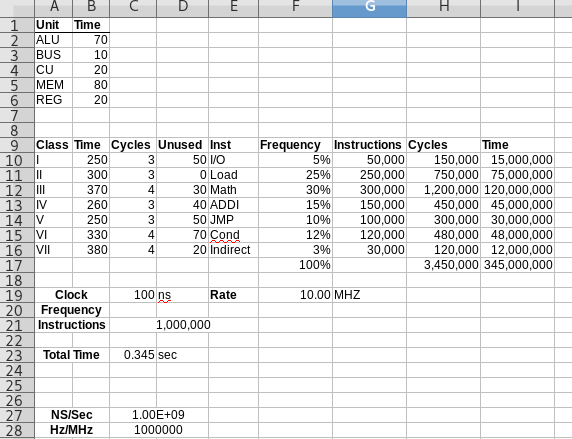

• My worksheet is here
