Syllogistic Arguments

• A form of argument where the conclusion is inferred from the premises.
• At least one of the premises contains a phrase in the form
  • Some ____ are ___
  • some ____ are not _____
  • All ____ are _____
  • No _____ are ___
  • ____ is a _____
  • _____ is not a _______
• Example:

  All German shepherds are dogs.
  All dogs bark.
  ∴
  All German shepherds bark.


• We will analyze these arguments using Euler diagrams.
  • This is essentially a twist on Venn diagrams.

• Let G be the set of German shepherds
  Let D be the set of Dogs
  Let B be the set of barking things.
  By the  first statement, G is somewhere inside of D
  By the second statement, D is contained in  B
  Thus G must be contained in B



• This diagram is an example of All Gs are D as well as All Ds are B
•

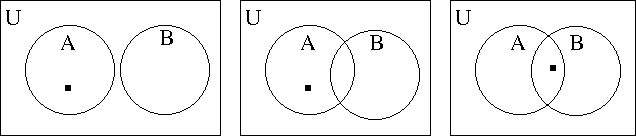

  • No As are B
  • Some As are not B
  • Some As are B
• Do some P167-168 7 through 30

Switching Circuits

• Show circuit for and and or.
• Do some problems Page 174 5 through 12
• Do some problems Page 174 13 through 20
• Do some problems Page 174 21 through 26
