A Crash Course in Databases.

• First
  • This is not a substitute for CSCI 313.
    • But it will do.
  • I am making this up, there is no single reference.
    • But I have been reading man pages like crazy the last week.
• Traditional Databases (Relational Databases)
  • Named because they generally have relations between tables.
  • We have seen this in the data model in excel.
  • Most are programmed/accessed/used via the Structured Query Language or SQL.
• NOSQL or Not Only SQL databases are different.
  • These are a more recent development
  • They are definitely associated with data science as well.
  • But they are not our topic for the next few days.
• DBMS : Database Management Software
  • Many different DBMS engines.
  • Lightweight such as SQLLite, Access, ...
  • Moderate like MySQL or Mariadb.
  • Heavy Duty Oracle or IBM/DB2
• These range in
  • Cost
  • Support
  • Speed
• We will use
  • Access
  • MariaDB - MySQL
• One of the cool things about databases is that they have lots of access permission built in.
  • You can be given read only permission
  • Or many other levels.
• In a large company you will NOT have access to the database.
  • But one of the DBA's will probably produce a table for you.
  • If you offer sufficient sacrifices to the DBA gods.
• In a small company you may have full access.
• You might even want to build your own database
  • Say you are maintaining a changing dataset.
  • You download it into a database
    • you can build a nice interface and allow workers to update the data.
    • You get better control of the data input
      • You can set up database rules that enforce data integrity.
  • Homework 5 is sort of aimed at this.
    • You will take a dataset and prepare it to be loaded into a data base.
• Databases are arranged in tables.
  • This is where tidy data came from.
  • There are lots of rules associated with tables.
  • Generally,
    • Store tidy data.
    • Don't store extra (redundant) data.
    • Make sure the data is in the proper range.
  • This is a majority of CSCI313
• Each table has a primary key
  • This is a item that is used to recognize unique entries.
  • It is usually an integer, but doesn't have to be.
  • It can be multiple fields or a single field depending on the table.
• Tables might also contain foreign keys
  • These provide the a link to data in other tables.
• Together the keys form relationships between tables.
  • There are multiple types of relations
• Generally a database schema is
  • Is the blueprint on how the database is designed
  • It includes a description of the tables
    • Names, types and properties of the fields
    • Identification of primary keys.
  • And the relationships between tables.
• Frequently a database schema is represented in an ER-Diagram
  • Entity Relationship
  • These are sometimes called Crow's Foot diagrams.
  •
    • Primary keys are indicated with a diamond
    • If a field can't be blank it has a filled in dot.
    • Relationships are shown with lines.
• The Iris dataset
  • This is a single table
  • It is also a standard dataset
  •
  • IrisDB

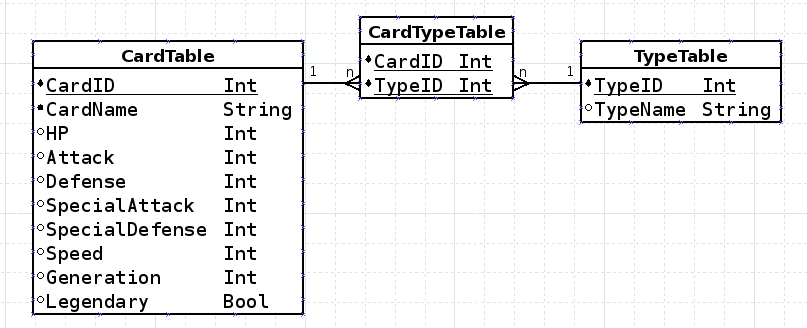

• The Pokemon dataset
  • This is from kaggle.
  • Three tables.
  • The first uniquely identifies the pokemon type.
    • This is a limited list of values.
    • A pokemon can have two of these types.
  • The second uniquely identifies a card
    • Without an indication of the type.
    • In the dataset there was a total field that was the total of HP, Attack, Defense, SpecialAttack, SpecialDefense and Speed.
    • Storing this would have duplicated data so it was removed.
  • Finally CardTypeTable describes the relationship between cards and types.
    • This allows a many to many relationship.
    • Ie A pokemon can have 0 or more types.
    • And a type can be associated with many different pokemon.
  • PokemonDB

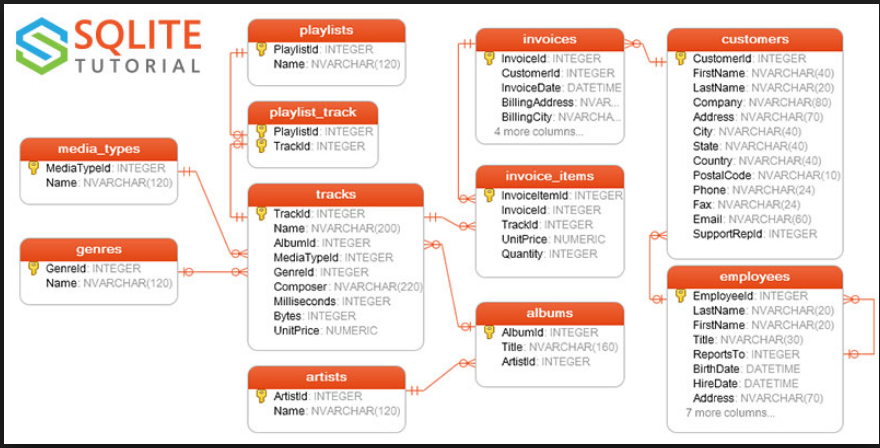

• We will also explore the chinook database.
  • This is a standard sample database.
  •
  • Chinook
