Finishing Numeric Fields

• We will use hero2.xlsx, the worksheet from last time.
• mode
  • The mode of a data set is the number that occurs most frequently.
  • There are debates if there can be more than one mode.
  • But this further tests the "normality" of a dataset.
  • =mode.sngl() returns the first "mode" encountered.
  • =mode.mult() is strange in that you need to use an array to compute this.
  • I will skip it for now.
• Let's Build a better histogram.
  • I would like to exclude outliers from the histogram.

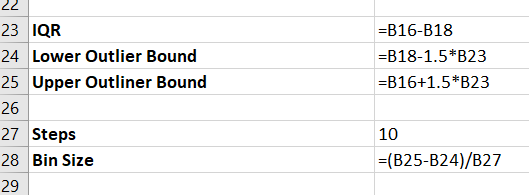

  • An outlier is 1.5 times the inter quartile range above or below the Q1 and Q3
  • The inner quartile range is just Q3-Q1
    • Then the upper and lower bounds are just Q1-1.5*IQR
    • I got 146 and 218.
    • I want to divide this into 10 bins plus two extra
    • For 10 bins between 146 and 218 I divide the difference by 10
    •
    •
  • I want to build a the ranges for these bins.

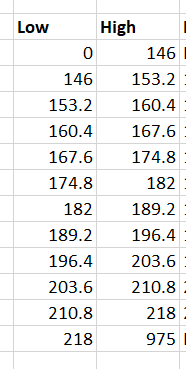

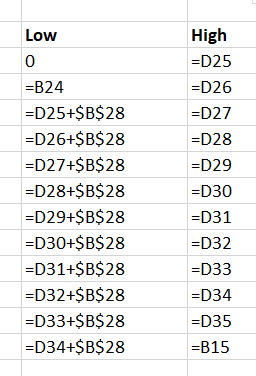

    • Label Two columns "Low" and "High" (D23 and E23)
    • In D24 put 0
    • In D25 put the computed lower bound.
    • In D26 put =d25+the bin size
    • Copy this down to D35
    • In E24 copy D25
    • Copy this down to E34
    • In E35 put the maximum value.
    •
    •

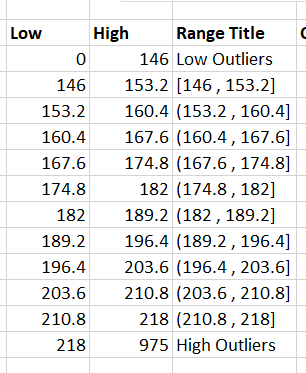

  • In F23 put "Range Title"
    • We want to build a string that represents the range value.
    • To do this we need to use string concatenation.
    • The command is &

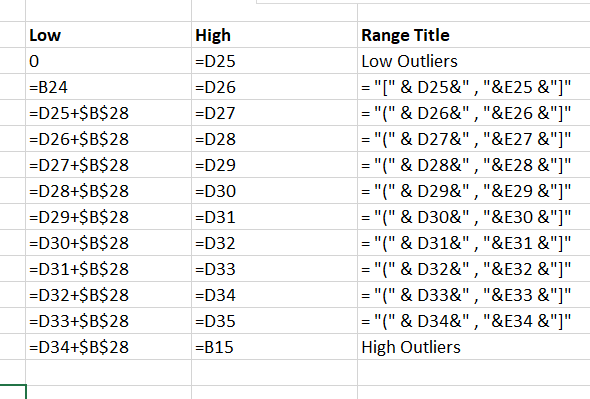

    • To start with, in F25 put =D25 & " , "
    • Not bad, modify this to be =D25 & " , " & E25
    • Not bad, modify this to be = "(" & D25 & " , " & E25 & "]"
    • Copy this down.
    • Modify F25 to be [146, 153.2]
    • In F24 Put Low Outliers
    • In F35 put High Outliers
    •
    •
    • What do [ and ( mean when we are talking about ranges?

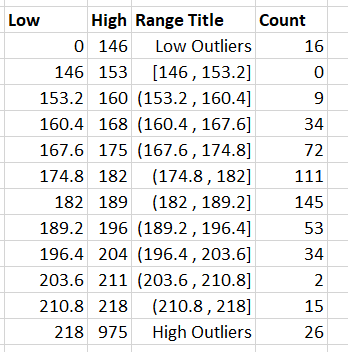

  • G23 put "Count"
    • We will want to count things right.
    • We will use a count if
    • In the first bin I want to count everything less than or equal to 146
    • But countf is strange, it takes a range and a formula
    • But the formula is a string.
    • In G24 put =countif(height, "<" & D25)
    • Let's do the high outliers
      • This is everything larger than D35.
      • Build this.
    • Ok, now for the second we want to count things that are greater than or equal to 146 but less than or equal to 153.2
      • A single countif would be nasty.
      • Let's build it up slowly
      • In G25 put =countif(height, "<=" & D26)
      • What did this count?
      • Now let's take off the things that are less than 146
      • In G25 put =countif(height, "<=" & D26) - countif(height, "<" & D25)
    • For everything else, we need to modify this slightly
      • We don't want to include the starting value, it will be counted in the bin below.
      • Copy the equation from G25 to G26
      • Change the second < to be a <=
      • Copy this down, but don't clobber the last computation.
    •
    •
  • How can we check this?
    • Add up all of the values.
    • What should these be?
    • We can check against the counts (Count-count-na)
    • Lets also check by changing a value to 146 and 153.2 in the data.
  • Turn this into a chart.
    • Highlight the range
    • Select column chart.
    • Fix the titles
    • Fix the column widths.
    • Look at 3d chart.
