Vlookup

• The workbook for this set of notes is Hero2.
• There are several functions that allow you to look up a value in a table.
• We will discuss the Vlookup function today.
• Hlookup is very much the same, but for tables going the other way
• index/match is a more advanced combination for DSCI 201
• xlookup is a feature that is coming soon.
• Vlookup comes in two modes
  • Exact match, look for a given value in a table.
  • Range match, look for a value in a range.
• For all versions of vlookup we need a table.
  • Arranged in rows of fields.
  • The first field is the think we are trying to match
  • The table we built last time is such a a table.
• We will start with exact lookup.
  • For this we will try to find the height and weight for a given size category.
  • We need the Size category to be the first column in a table.
  • Setup

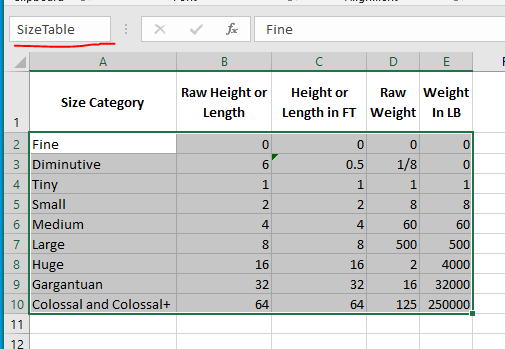

    • First name the table to be SizeTable
      • Highlight A2:E10
      • Put SizeTable in the Name Box
      •
    • Then build a place to work
      • In cell A22:C22 put the following
      •
      • Put Medium in cell A23
  • The Vlookups
    • In the exact form, there are no qualifications on the table.
    • But the thing we are searching for must Match.
    • We are trying to Find Medium in the table.
    • We want to know the weight (from column 5) and the height (from column 3)
      • Note that the columns are numbered from the start of the table, not from the start of the worksheet.
      • The Index column is always column 1
    • Vlookup takes the following parameters
      1. The thing you are looking for.
         • In this case, it is the value in A23
      2. The table in which you are looking for the item
         • In this case it is the SizeTable.
      3. The column number of the thing you want back
         • we are looking for weight, so we want column 5.
      4. In the case of an exact match, the word False
    • The actual lookup
      • In cell B23 enter the following
      • =vlookup(A23, SizeTable, 5, False)
      •
      •
    • Change the value in cell A22 to something else and observe.
    • Repeat this exercise, but this time look up the height for a given name.
• A ranged lookup allows us to find a value within a range.
  • The table needs to have a range column as the first column.
    • This needs to be arranged in ascending order. Smallest to largest.
    • The lowest possible value needs to be the first value.
  • The lookup will proceed as follows
    • If the value is greater than or equal to the first value, but less than the second value, it will match the first.
    • If the value is greater than or equal to the second value, but less than the third value, it will match the second.
    • UP to the last.
    • If it is greater than or equal to the last value, it will return the last value.
  • Setup
    • We need to build a new table
      • Copy E1:E10 to column G, but paste as values
      • Copy A1:A10 to column H
      • Name E1:H10 as WeightTable
      •
    • We need a place to do the lookup
      • In A25:B26 place
      •
  • The Lookup
    • We are searching for a 20 in the Weight table, and we would like the second column back.
    • Since this is a ranged lookup, we don't need the fourth parameters.
    • =vlookup(a26, WeightTable,2)
    •
    •
  • Why did it find Medium?
  • Experiment with other weights.
  • Repeat the exercise with a lookup for heights.
• Classifying the Weight
  • We are missing one part, so I need to filter the data.
    • Create a new worksheet, call it Cleaned Height and Weight.
    • in A1:B2 put
    •
    • Use this table and an advanced filter to get a new table with weights and heights not equal to na.
    •

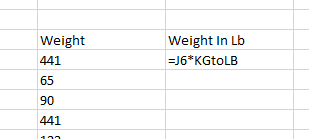

  • Create a derived field, Weight In Lb
    • Add a title Weight In Lb
    • Under this add the formula =J6*KGtoLB
    •
    •
    • Copy this down.

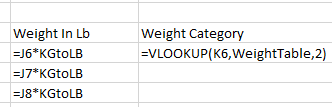

  • Add a derived field Weight Category
    • Add the title
    • Enter the vlookup to lookup the weight in the Weight Table
    •
    •
    • Copy this down.
  • Repeat this process for Height.
