Creating Category Data from Numeric Data

• For these notes we will continue to use the Cleaned Hero Dataset
• My problem is that there are too many different weights and heights to deal with.
• In D&D the build a table to classify things
  • Look here ( https://www.dandwiki.com/wiki/SRD:Table_of_Creature_Size_and_Scale)
• I would like to use this table to classify my superheros weight and height as Fine, Diminutive, ... Colossal
• To do this I will need to
  1. Download the table and reformat it.
  2. Convert weights to pounds and heights to inches
  3. Associate the Size category with each superhero.
• We could just copy and paste the table but let's use a cool feature of excel.
  • On the Data tab in the Get & Transform Data workgroup select From Web
  •

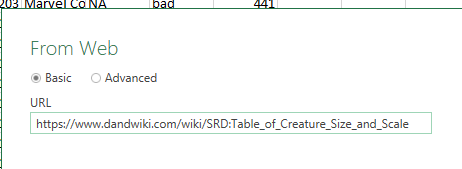

  • Fill out the form
  •
  • Select the table we are interested in and select Load
  •
  • This may take a moment.

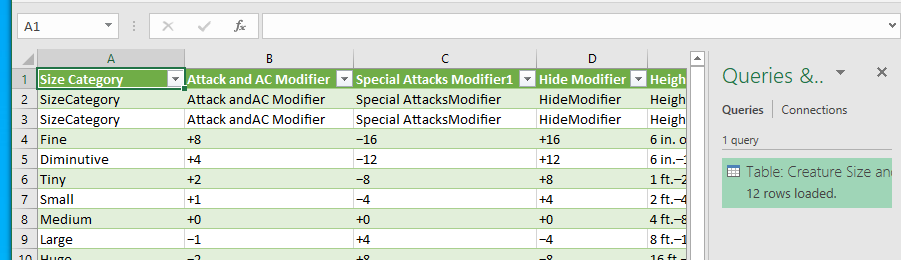

  • Notice this created a new worksheet.
  • You are in the Queries & Connections tab.
    •
    • You could do many things here, but that is for DSCI 201.
    • Just closet the query tab.
  • I would rename the worksheet Weight & Height

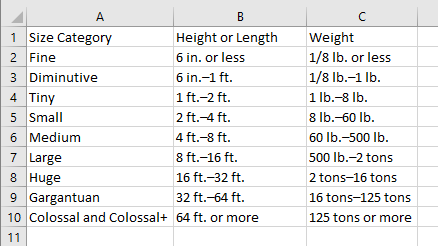

• Cleaning the Weight and Height table
  • Covert it back to a range.
  • Clear the formatting.
  • Delete row 13
  • Delete Rows 2 and 3
  • Delete all columns except
    • Size Category
    • Height or Length
    • Weight
    • Fix the names if you need to.
  •
• Fixing the Weight.
  • The weight field is currently text.
  • I really want the first number out of this field.
  • And I will probably need the units as well.

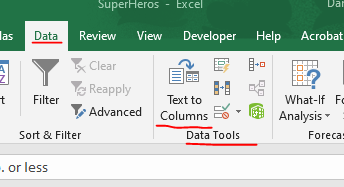

  • We will use the Text To Columns from the Data Tools command group in the Data tab to do this.
  •
  • Be careful when you use this tool, it will clobber
    • The data you are working on.
    • Data to the right of your data.
• Splitting a text field.
  • Select C2:C10 and click on Text to Columns

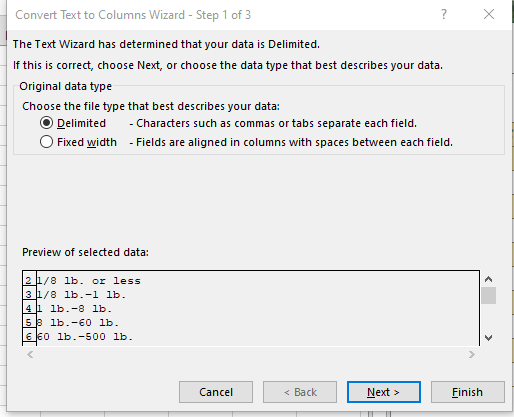

  • This starts the Convert Text to Columns Wizard
    •
    • Delimited means we know what we want to split on.
      • In this case, tabs or spaces is what we want.
    • Fixed means fields are aligned and we know how wide each is.
  • We want delimited so select next.

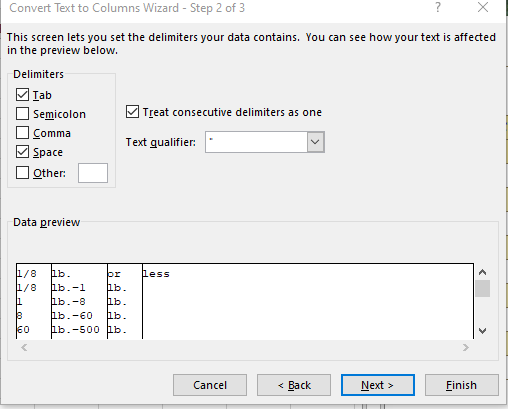

  • In step 2 we need to tell it to split on space.
    •
    • Select space.
    • I usually want to treat consecutive delimiters as one.
    • Make sure that you check out the preview.

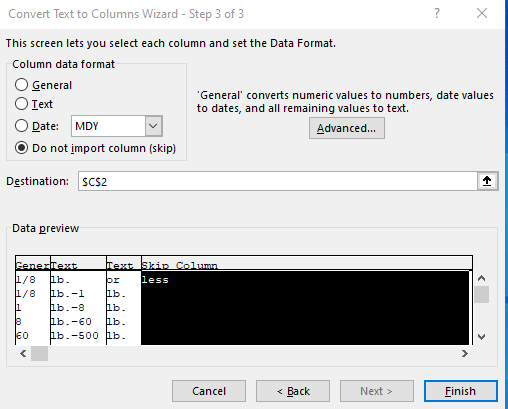

  • In step 3, we can
    •
    • Format columns (sort of)
    • Eliminate columns.
    • Format the first as general,
    • The next two as text
    • Drop the last one.
    • Select Finish
  •
• Finishing the Weight Field.
  • The first two, excel decided to convert to dates anyway
  • We will want a 0 in the first, just put it there.
  • The second should be 1/8 so enter =1/8 there
  • We will need to reformat these fields.
    • C2 as a number

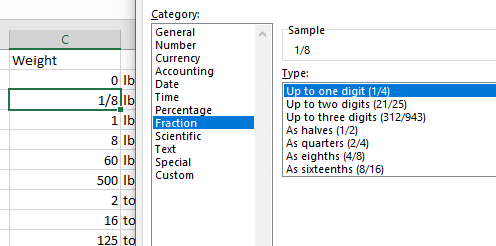

    • C3 as a fraction, but listen to the warning.
    •
  • We will need some constants for conversions, so

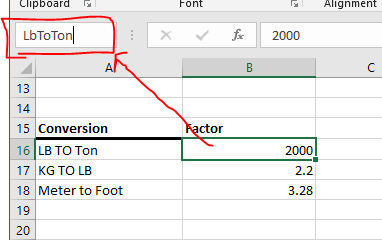

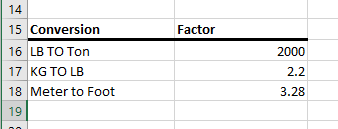

    • In A15 put the following
    •
  • You can name individual cells
    • Click in cell B16
    • In the name box enter LbToTon
    •
    • Repeat this for the other two fields.

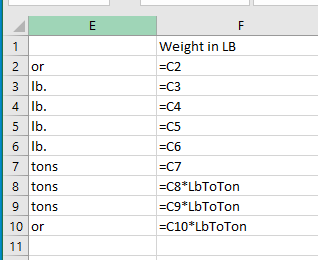

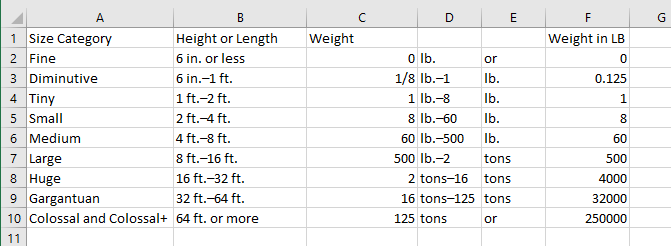

  • In column F, compute the weight in Pounds
    • Use an = to just copy over C1:C7
    • Multiply by LbToTon in the last 3
    •
    •
  • You can now delete Fields D and E
• We need to repeat the same process for the Height or Length column.
  • But there is already data to the left, so we need to make space.
  • I believe that we will need three columns.
  • Insert these three columns to the RIGHT of the Height filed.
  • Do the split.
  • Replace the first one with 0

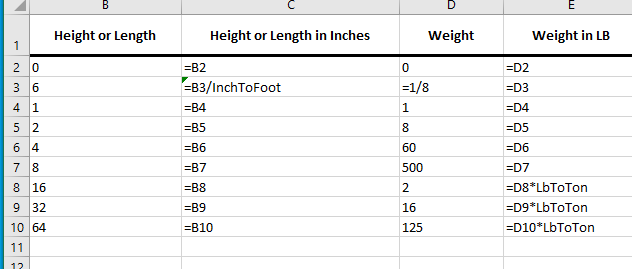

  • In the new column E, convert everything to Feet.
    • I forgot an Inch To Foot constant, so Add it.
  • Delete columns C and D.

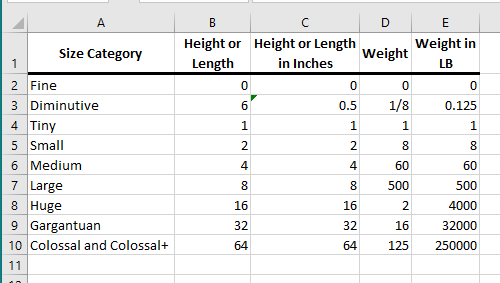

  • Format the table headers nicely.
  •
  •
• Save this workseet, we will need it in the next set of notes.
