Go-Back-N

• This is a "windowing" technique.
• All math on sequence numbers is done modulo n, where n is the maximum sequence number.
  • This allows us to wrap around the sequence numbers and start again.
  • So with a three bit sequence number 7 is followed by 0
  • This is the same problem you have implementing a queue in an array
• A window is defined.
  • This indicates the number of transmitted packets which can be unacknowledged.
  • If the last acknowledged packet was 1 (referred to as the base), and the window is 4, packets with sequence numbers 2,3,4,5 can be unacknowledged and sent, but packet 6 must not be sent.
  • The window must be smaller than the total size of the sequence.
• An ACK
  • Has an associated sequence number.
  • An ACK acknowledges all packets with that sequence number or lower.
  • Thus an ACK per packet is not required.
• So from the above example:
  • An ACK with a sequence number of 4 will ACK packets 2,3,4
  • Thus the sender can now transmit packets 6, 7 and 0
• This is know as a sliding window protocol since the window slides along the packets in flight.

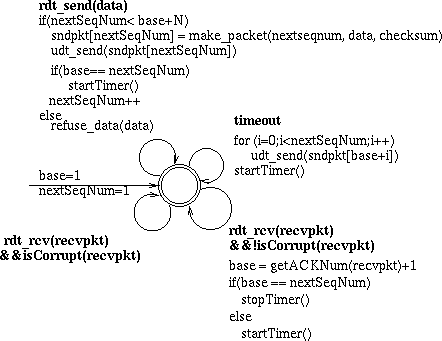

• The FSM for send is much more simple (sort of)
•

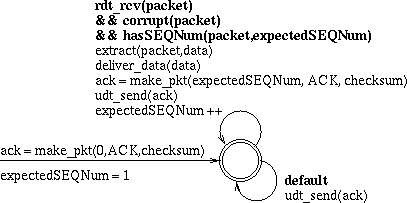

• The FSM for receive is more simple too (sort of)
•
• Notice, each packet is ACKed, but the sender can handle lost ACKs.
• Also notice, out of order packets are dropped. (the default case) and ACKed with the last good packet.
  • This causes the sender to resend all intermediate packets after that ACK.
• Note the decision to not hold packets that arrive out of order.
  • This will simplify the receiver.
  • Much less requirement for buffer management.

Selective Repeat

• Go Back N will suffer when select packets are dropped.
• If we save out of order packets we can avoid this.
• But we will have to ACK every packet.
• Furthermore, for the sender, each outstanding packet needs an individual timer
• A window is used to place a limit on buffer sizes.
• Sender
  • Send a packet and set the timer for that packet.
  • When data arrives from above, (perhaps) buffer it if the window is full.
  • When an ack is received
    • If it is the base, slide the window
    • This may move more data into the ready to send area
• The receiver
  • If a good packet in the window is received
    • ACK it (if we use it or not)
    • If it was not previously received.
      • store it
      • Now send this and any other sequentially ordered packets after it to the application.
• Kurose notes that there is still a possibility of lost packets causing problems.
  • The maximum assumed lifetime of a packet is 3 minutes (for TCP)
  • Sequence numbers need to be high enough to handle this.

Credit Scheme

• Stallings discusses an additional scheme which seems well suited to TCP
• TCP views the entire transaction as a data stream.
  • Individual packets are not numbered sequentially but by their byte numbers.
  • There is a Minimum Segment Size (MSS)
    • This is the maximum size of the data portion of the TCP segment
    • Either constant: 1460, 536 or 512
    • Or based on MTU for underlying networks.
  • The sequence number is the first byte of the message
  • Assume a MSS of 500.
    • The first segment will have sequence number 0
    • The next will be 500 , ...
  • Kurose has an example for telnet
    • TCP is a full duplex service, or there is a pipe both directions.
    • ACKs are piggybacked with data.
    • Each character typed on the client is sent in a packet to the server.
    • Each character received by the server is echoed back to the client.
    • Each echo from the client is ACKed
    • An Ethereal demo might be in order here.
  • TCP has a 32 bit sequence number field.
  • And a 32 bit ACK number.
• In this case an ACK is for a set of bytes, not a packet.
• The client can send back a window size, in bytes.
• This window size says how many bytes of buffer space the receiver has available.
• Or, with a slow network, can predict how many will be available in the future.
• This, by the way, is also flow control
• Note, that window size is one of the TCP fields. (16 bits)
• Note also that TCP is a mixture of Go-Back-N and Selective Repeat
