- This might help today.

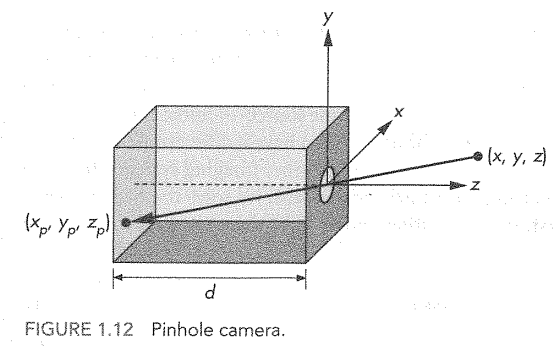

- The Pinhole camera
- Is a box with photographic material on the back wall.
- There is a
**pinhole**in the center of the front.- Let's consider the pinhole to be (0,0,0).
- The back wall is at -d
- We are looking along the positive "z" axis
- And we are looking at a point (x,y,z) in space.

- Notice, the photographic material is centered at (0,0,-d)

- Light will travel from the point (x,y,z)
- Through the pinhole
- And "strike" the photo at $(x_p, y_p, z_p)$

- Let's assume we know the "color" of point.
- What pixel should we set to that color?
- IE, where is $(x_p, y_p, z_p)$
- $z_p$ is -d by definition
- For simplicity, assume $x=0$

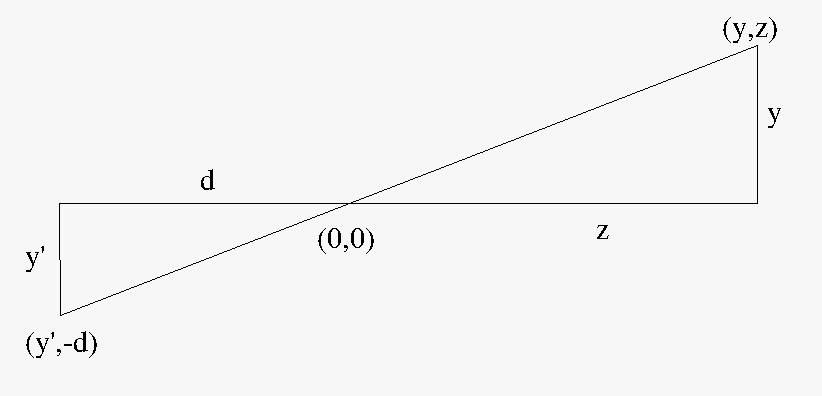

- We have something like this
- In this case, we know $(0,y, z)$, the point projected into the yz-plane
- We know $z_p = -d$
- We can use similar triangles to compute $y_p$.
- $\frac{y_p}{-d} = \frac{y}{z}$
- $y_p = \frac{y}{z}\times -d$
- $y_p = -\frac{y}{\frac{z}{d}}$

- The same is true for $x_p$
- ie $x_p = -\frac{x}{\frac{z}{d}}$

- So the new position will be $(-\frac{x}{\frac{z}{d}}, -\frac{y}{\frac{z}{d}}, -d)$

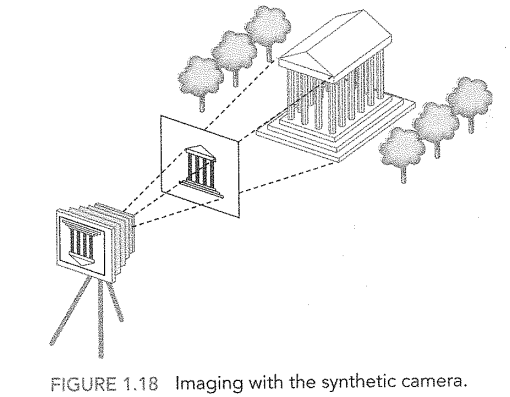

- A modification is to move the "photographic plate " to in front of the camera.
- The new position will then be $(\frac{x}{\frac{z}{d}}, \frac{y}{\frac{z}{d}}, d)$
- We can develop the matrix
$\begin{bmatrix} 1 & 0 & 0 & 0 \\ 0 & 1 & 0 & 0 \\ 0 & 0 & 0 & 0 \\ 0 & 0 & \frac{1}{d} & 0 \end{bmatrix}$
- This matrix needs to be applied AFTER all of the other transformations have been accomplished.
- Later we will call this the
**Projection**matrix. - This is because it
**projects**the points from three space to two space.

- Notice that all points along the line $(x,y,z) , (x_p, y_p, d)$ are projected to the same point.
- If we keep track of depth, we can decide which to display/store in the frame buffer..

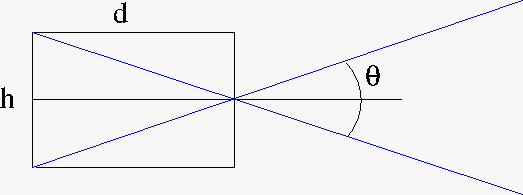

- A second parameter, the "height" h of the photographic plate controls the
**view angle**- Again a projection into the YZ plane.
- $\tan(\theta) = \frac{opposite} {adjacent}$
- opposite = $\frac{h} {2} $
- adjacent = $d$
- $ \tan(\frac{\theta} {2}) = \frac{\frac{h}{2}}{d} $
- $ \tan(\frac{\theta} {2}) = \frac{h}{2d} $
- In this case $\theta = 2 \tan^{-1}(\frac{h}{2d})$
- The same calculation is true for x.
- But for non-square "photographic plates" we will have different angles.

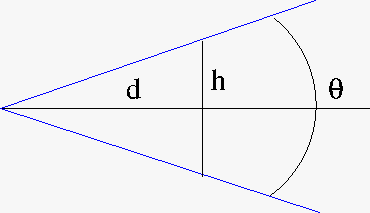

- The same is true for the modified camera

- We will further develop these ideas, but in general
- you can change d,
- you can change h (and w)
- you can change the alignment of the "photographic plate"
- Location in space
- Angles.

- We normally add a back plane
- This allows us to throw away things that are "too far away"
- This forms the view frustum.

- What would the projection matrix
$\begin{bmatrix} 1 & 0 & 0 & 0 \\ 0 & 1 & 0 & 0 \\ 0 & 0 & 0 & 0 \\ 0 & 0 & 0 & 1 \end{bmatrix}$ do?
- orthographic
- perspective
