Chapter 1 Continued

• I am starting at 1.7, Graphics architectures.
• On page 28/29 he presents three different potential architectures.

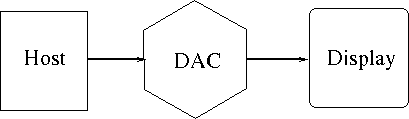

  • The first is a "traditional" graphics system.
    •
    • The host is a traditional computer
    • DAC: Digital to Analog Converter, a bad old graphics system.
      • Probably supported basic canvas functions like we are using.
    • Display
    • In this system, the CPU was responsible for everything but drawing lines.
    • And this transfer took place via a slow bus.
    • In a game, the CPU had to generate and draw all of the triangles, as well as everything else.

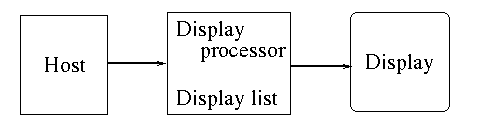

  • The second is a more modern system.
    • The next step was the Display Processor
    •
    • The CPU would generate a display list and send it to the processor.
    • The display list could be stored in the display processor's memory
    • The CPU might change some parameters
    • And the image could be redrawn with a simple call
    • Thus the data needed to be transferred once
    • Somewhat of a client-server model.
  • The third architecture is the modern architecture
    • The image is mostly the same as the last one.
    • But the system implements a graphics pipeline
    • The CPU sends a list of vertexes to the processor.
      • These may or may not be stored in the GPU
    • The coordinates of vertexes are changed, and other transformations may occur in the vertex processor
      • This is at least a matrix vector multiplication
      • We can also assign colors (but this is not the normal place)
      • We can do many other things as well.
      • Because we can write a program to run at this stage of the pipeline.
      • This program is called the vertex shader
    • The clipping processor
      • Clips the lines so they fit into the drawing area.
      • Called the clipping volume
      • This is performed on triangles and other primitives
        • We will see later how this is done.
    • Rasterization transforms primitives into fragments
      • Fragments are potential pixels.
      • But they have additional information (such as depth, color properties, ...)
      • This is programmable in modern GPUs as well.
    • Fragment Processing occurs last
      • Potential pixels are discarded
      • or proper lighting is applied.
      • Or anything else, this is programmable as well.
• OpenGL
  • A cross language cross platform application programming interface (API)
  • Started by SGI, currently managed by the Khronos Group.
  • Provides calls for rendering 2D and 3D graphics.
  • There have been four major and many many minor versions of OpenGL
    • OpenGL M.n
    • OpenGL 1.1
  • OpenGL 2.0 introduced the GLSL (OpenGL Shading Language) which allowd programming of the graphics card.
  • The latest version is OpenGL 4.6, in 2017
• WebGL
  • A javascript API compatible with "all standard web browsers"
  • Supports shader code (OpenGL ES Shading Language (GLSL ES))
  • GLSL ES is executed on the GPU
  • 2.0 and above are based on OpenGL ES 3.0
  • It does not support deprecated OpenGL 1.x functions.
  • Has some helper libraries,
  • Used by Unreal and Unity among others.

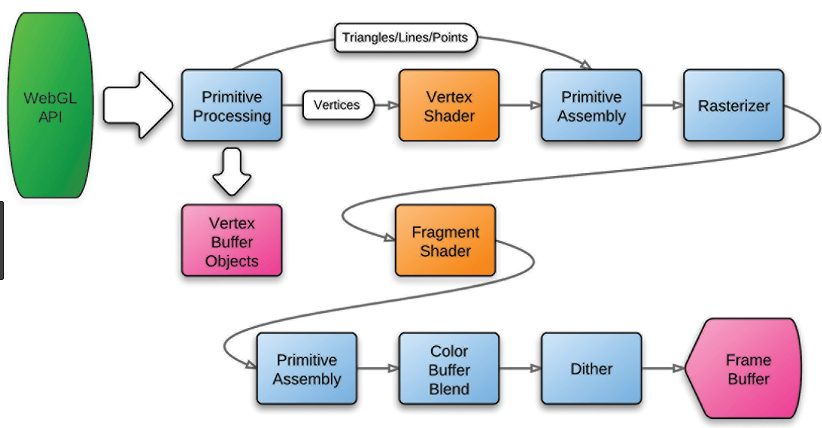

• The WebGL pipeline
  • As describe above
  •
• Two terms
  • immediate mode graphics: primitives are specified in the program and immediately sent through the pipeline for display
  • retained mode graphics: primitives are stored on the GPU
• Read Chapter 1.
