Introduction

• Data is recorded facts and numbers.
  • The easiest way to think of data is as a table.
    • My class rosters
    • Your scores in a class.
    • List of citations issued on a given night
  • Data at one time in our history was fairly limited.
  • But the modern information age has made data rapidly available in large quantities.
• Information
  • Knowledge derived from data.
  • Data presented in a meaningful context
  • Data processed by summing, ordering, averaging, grouping, comparing or other similar operations.
• A Database is an organized collection of data. (Wikipedia)
  • Simple databases, such as spreadsheets, log books, stacks of forms have existed for a long time.
  • In arelational database data is organized in tables, with relationships between tables serving as a fundamental tool to organize the data.
  • A object oriented database treats data as objects
  • NoSQL or not only SQL databases are a newer invention driven by massively distributed databases.
    • These are document oriented databases, think XML documents.
    • Big data
• A Database Management System (DBMS) is a software application that manages the storage and interaction with a database or multiple databases.
  • We will use MySQL
  • Others include PostgreSQL, Microsoft SQL Server, Oracle, SAP, IBM DB2, ...
• We will, for the most part, focus on relational databases.
• Tables
  • Data is stored in tables, consisting of rows and columns.
  • A table should contain information about a single "thing".
  • For example, a conference might have a table of
    • Students in a university.
    • Classes at a university.
    • Grades for students in classes at a university.
    •
  • Each column in a table represents an attribute
    • Think field in a record.
    • First name, last name, ...
  • Each row in a table represents an instance
    • Or one individual thing.
    • A collection of all of the attributes.
  • This use of rows and columns are by convention
    • They could be transposed.
    • Kroenky says that 99.999% of the dbms systems in the world
• Naming Conventions
  • For the book and for this class.
  • TABLES are all named with upper case letters, with the underscore separating words ( STUDENT, STUDENT_RECORD)
  • ColumnNames will appear as CamelCase. ClassName, Grade, FirstName ...
• Relationships
  • Relationships link tables forming compound instances.
  •

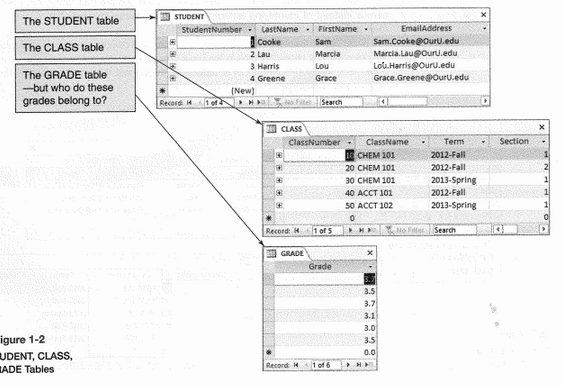

  • The first two tables are ok, but the third is meaningless.
  • Relations between tables provide that meaning
  •
• Keys
  • Tables are required to have keys which uniquely identify each instance.
  • For example,
    • In the CLASS table, ClassNumber is the key
    • Each class has a unique number.
    • If I know that I am in Class 10, I know that it is Chem 101, section 1, fall 2012
  • Keys are used to identify an instance in a table.
  • A table may have multiple keys, but one is selected to be the primary key
  • Other keys are called alternate keys
  • Sometimes a key can be a natural attribute of an instance
    • Consider, for example, university names in a conference database.
    •
    • The name, or address could be the primary key.
    • The other would be an alternate key.
  • Other times, an artificial key must be used.
    • This is called a surrogate key.
    • It is generated by the DBMS (usually).
    • The DBMS ensures that these keys are unique.
  • At times, a key may be constructed from two or more attributes
    • This is called a composite key
    • The GRADE table contains a composite key, (StudentNumber, ClassNumber)

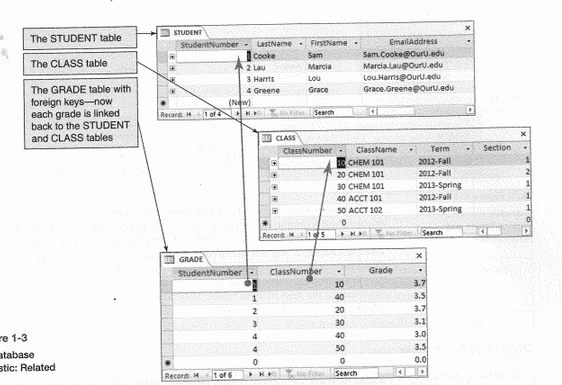

  • If the key is constructed from an attribute stored in another table, it is a foreign key
    • In the GRADE table, (StudentNumber, ClassNumber) constitute a foreign key.
  • Foreign Keys are the mechanism for constructing relationships.
• We will spend quite a bit of time discussing these concepts in more detail later.
