Clock Cycles

• Some of this is from B.7 (page B-48) or 4.2 (page 249)

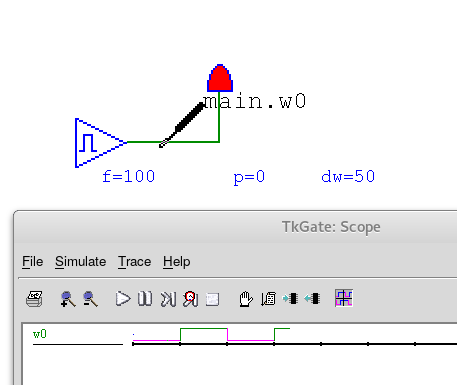

• It is possible to construct an electric oscillator which which creates an electrical signal.
• Or a clock.
•
• These are generic "ticks"
• A clock has
  • A frequency or number of cycles per second
    • This is normally in Gigahertz (GHz) today
    • A hertz (Hz) is one cycle per second.
    • But can be slower (MHz, KHz)
    • A Typical clock speed is 2GHz
      • This is 2x10⁹ cycles per second
  • A period or the length of the cycle.
    • This is the appropriate units of seconds per cycle.
    • A 2GHz clock is 2x10⁹ cycles per second

      2GHz = 2x109 cycles per second.
      Or 1/(2x109) seconds/cycle
             =  1/2 x 10-9 seconds/cycle
             = .5 x 10-9 seconds/cycle
             = 500 x 10-12 seconds/cycle
             = 500 ps per cycle.
             = 500 ps/cycle


  • Clock edges are named.
    • When the clock changes from low to high, this is the rising edge or leading edge
    • When the clock changes from high to low, this is the falling edge or trailing edge
• A clock drives a circuit.
  • The following is equivalent to a counter.
  • It consists of
    • A clock
    • A register to hold the current value.
    • An adder
    • An output display
    • An input increment
    • A register clear switch
  •
  • The source is here
  • To operate
    • Go into simulate mode.
    • Set a value on the Increment switch<
    • Lower Clear switch for a while (10 time units) until the display is set to 000
    • Raise the Clear switch.
    • Let the simulation run
  • Is the clock cycle length important?
    • If we click on the register we find that it wants the clock to be at least 20 ticks long.
    • We also find that the Adder is interested in a delta of about 70 ticks.
    • So what if we reduced the clock cycle to 50 ticks.
  • How is the clock period determined?
    • In a CPU with a single cycle clock the entire instruction must be executed in the length of the clock cycle.
    • In a CUP with a multi cycle clock instructions are divided into parts and each part of an instruction must be completed in a single clock cycle.
    • What?
      • Each component of a system has a set amount of time required to perform the assigned operation.
      • As we saw, a register in tkgate requires 20 ticks to complete an operation.
      • The TKGate Adder produces the carry out in 70 ticks.
      • Memory in TKGate requires 80 ticks
      • The multiplier requires 124 ticks.
      • The divider requires 236 ticks.
      • We are looking at things that require additional control, so even though the bus is just a wire, it employs several devices that make it take about 10 ticks
      • The CU may take 20 ticks.
    • So how long does it take for the fetch phase of every instruction
      • BUS ← PC (10 ticks)
      • MAR ← BUS (20 ticks)
      • MDR ← M[MAR] (70 ticks)
      • BUS ← MDR (10 ticks)
      • IR ← BUS (20 ticks)
      • TOTAL 130 ticks.
  • How long will each instruction take?
    • Nothing to do here but trace each one through.
    • Do you expect these to all be the same length?
      • Which would be longest?
      • Which would be shortest?
  • So what would the problem with a single cycle clock be?
  • How long would you make a multiple cycle clock?
