Subroutine Calling

• Do we need anything special to implement subroutines?
  • Can we do it with just a branch?, or two?
  • BL R_tmp,address
    • Save the current value of the pc in a register
    • Jump to address
    • The value of the pc will already have been incremented.
  • BR R_tmp
    • Branch to the address stored in register tmp.
  • This will work as long as the procedure is a leaf node.
  • How about storing the value of the branch register?
  • This will work as long as the procedure is only called once in the activation sequence.
  • So how do we do it?
    • A register called the frame pointer
    • A register called the stack pointer
    • These provide access to the runtime stack
    • All local addresses are relative to the frame pointer
    • The return address and parameters are all stored on the stack.

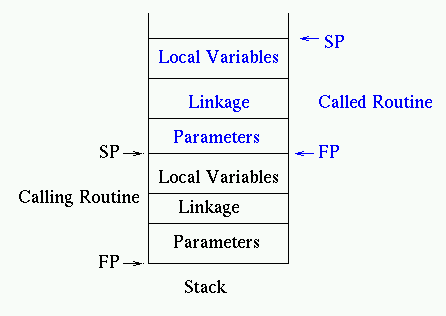

    • This is called an activation record.
    • Local variables are stored on the stack as well.
    • The stack pointer is incremented as more variables are added.
    • To call a subroutine, place the parameters on the stack
    • Make place for the return value
    • Make a place for the return address
    • Store the current frame pointer.
    • call the routine (BL, JAL, ...)
      • This will change the frame pointer to be the current stack pointer
      • And the stack pointer stays the same.
      Upon return, the old frame pointer is restored,
      • The stack pointer is reset
      • Take any parameters, return values you need off of the stack
    • Different architectures support slightly different versions of this
    • Some (like the sparc) use registers for part of the parameters
    • Some do more work than others.
    • A calling convention
      • Specifies how all this is to be done
      • Where to put things
      • What the programmer must do
      • (Save registers, push frame pointers, ...)
