Dynamic Data

• You should read chapter 14.
• Up until now all of our storage has been allocated at compile time.
  • Declared variables
  • Declared arrays
  • This is called static data.
• Don't confuse this with the static reserved word.
  • This marks a variable to have a lifetime that extends beyond the invocation of the routine in which it is declared.

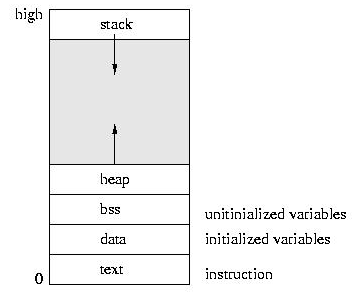

• In general memory is organized
  • The runtime stack or stack.
  • This is where subroutines allocate memory for parameters and local variables.
  • The heap
  • This is where dynamic memory comes from.
  • We can allocate memory from the heap at run time
  •
• When we allocate memory from the heap, we need a place to store it.
  • Read section 10.7, Pointers.
  • Pointers are an ADT
    • Domain: A location or the special value NULL
    • Operations:
      • assign the pointer the value of a location
      • access the data at the location to which the pointer is pointing.
    • In most languages, pointers are implemented as memory addresses.
  • In C/C++ we declare a pointer to a specific type of data.
    • int a declares an integer sized chunk of static memory (on the stack, or data/bss segments).
    • This memory is called a.
    • This memory can store an integer.
    • a = 7 places the value 7 into a.
    • int * ptr declares a integer pointer sized chunk of memory (on the stack, or data/bss segments).
    • this memory can store an integer pointer.
    • ptr = NULL
    • ptr = &a;
    • You could, but never would do this (Except for example programs)
    • *ptr dereferences or access the memory pointed to by the pointer.
    • cout << *ptr << endl; will print the value (7) that ptr points to.
    • *ptr = 22 assigns 22 to the memory ptr points to.
  • Declaring pointers
    • The * is associated with the variable in the declaration
    • int *ptr1, ptr2
      • Does not do what you think
      • ptr1 is declared to be an integer pointer.
      • ptr2 is just an integer.
    • int *ptr1, *ptr2 is the proper way to do this.
  • Pointers and arrays
    • Arrays are pointers, that is why they are so weird.
    • int a[10];
    • int * b
    • b = a sort of does what you think it does.
  • Pointers to structures.
    • If DataT is a class with member data member1 and member2
    • DataT * ptr, data declares an instance and a pointer to a DataT.
    • ptr = &data will point ptr at data.
    • ptr->member1 = someValue assigns someValue to member1
    • cout << ptr->member2 will print out member2
  • Pointers to classes.
    • If ClassT is a class, with member functions One(int i) and Two().
    • ClassT * ptr, data declares a pointer to a ClassT and an instance of the ClassT.
    • ptr = &data; points ptr at data.
    • ptr->One(7) calls the One member function.
    • cout << ptr->Two() calls the Two member function.
  • So there are three basic operations
    • * dereferences a pointer to an item.
    • -> dereferences a poitner to a member of a structure
    • [] dereference a pointer to an item in an array
    • & return a pointer to a instance of a variable (or other things)
