Introduction to Memory Management

Notes

• We have just seen how processes can share a "cpu"
• How do they share memory?
• That is the topic of the next section.
• Like everything else, we will view a historic development of memory management.
• Memory is
  • A large array of bytes.
  • One single thing, not data memory and instruction memory for example.
• In general, we are talking about ram
  • Registers are managed by the program and protected in a context switch.
  • CACHE is mostly automatically controlled and out of the hands of programmers
  • Hard drive space (auxiliary storage in general) is too slow, but will come into play eventually

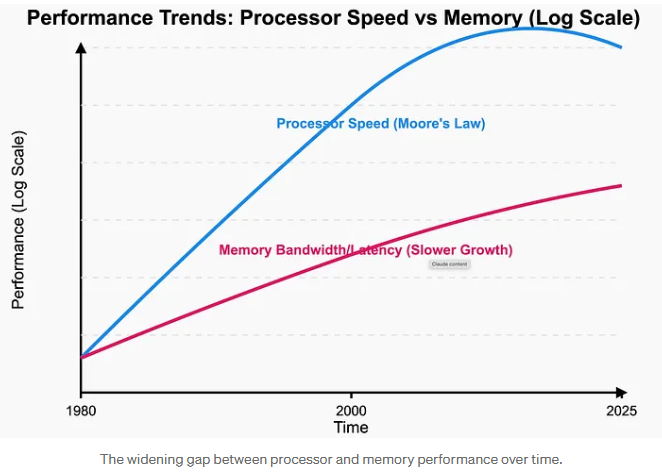

• The trend over time is for cpu speed to greatly outpace memory speed
  • A descriptive article.
  • from Anand Mirji (medium.com/@abab,nurhu)
    • Processors in the GHz (low )
    • Memory in MHz (High)
  • Memory is getting faster, but there are still latenicies involved.
• But a second issue is that memory must be protected.
  • We can assume that early programs had access to full memory
  • Later the OS and service routines were loaded into memory and kept memory resident.
  • So we needed a way to control program access to memory
• Currently the MMU
  • Contains a base register and a limit register
  • The base register points to the lowest point in memory the program can access
  • The limit register points to the highest point.
  • Access between the base register and limit register is unrestricted
  • Access outside of this space requires OS permission
  • So
    • These two registers can only be changed in kernel mode
    • Become part of the context of a process
    • Determine the memory the program can access or the bounds of a program's memory
  • See figures 9.1 and 9.2 (351 and 352)
• A program thinks that it is addressing memory from 0 on
  • But the MMU can adjust by adding the base register value to addresses to obtain the physical address.
  • The original address is called the logical address
  • See Figure 9.4, p 354.
  • And we might call the base register the relocation register.
• By the way, they take a side trip into linking and loading
  • Address binding
  • Compilers can produce absolute code when they know where labels will be loaded
  • Compilers can produce relocatable code when they do not.
  • A linker/loader will resolve these addresses when linking, or loading the code into memory
  • This allows for dynamic libraries to be kept memory resident for use by many programs at the same time.
