Triangles

• We won't finish this demo today, but we will discuss parts of it.
• We really like triangles in openGL.
  • They are simple
    • IE there can be no crossing edges.
    • it is easy to tell what is inside and what is outside.
  • They are also co-plainer
    • This makes checking for a front face easier
  • It is easy to detect a degenerate triangle.
    • The points are all co-linear.
  • If a polygon is convex, fan triangulation can be used to draw it.
    • Pick a vertex and draw triangles in order
    • This is the algorithm used in gl.TRIANGLE_FAN
      • In both gl.DrawElements and gl.DrawArrays
  • There are other algorithms that transform a convex polygon into triangles that might perform better.
• Front face detection
  • A normal to a plane is a vector pointing perpendicular to that plain.
  •
  • Note, this is not normalized
    • $|a| = \sqrt{a_0^2+a_1^2+...+a_n^2}$
    • A vector $a$ is normalized if $|a| = 1$.
    • To normalize a vector $a$ just compute $\frac{a}{|a|}$
    • This is also called a unit vector
    • It gives direction.

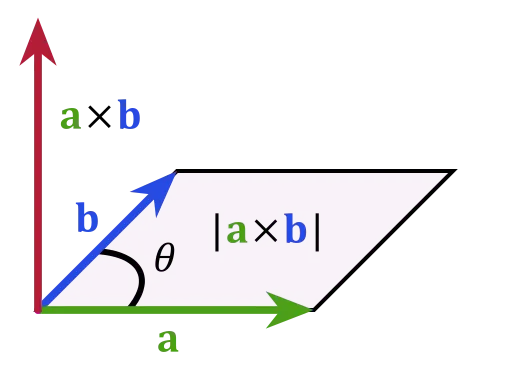

  • For two vectors in 3 space the cross product
    • Is defined in multiple ways.
    • For vectors $a$ and $b$
    • $ a \times b = \begin{bmatrix} a_2b_3 - a_3b_2 \\ a_3b_1 - a_1b_3 \\ a_1b_2 - a_2b_1 \end{bmatrix}$
  • A separate interpretation is $a \times b = |a||b| sin(\theta)n $
    • Where $|a|$ is the magnitude of a.
    • But if we make $a$ a unit vector , ($\frac{a}{|a|}$), $|a| = 1$
  • We can use the cross product to compute a normal vector.
    •
    • Again, we can normalize the results to eliminate the $|a||b|sin(\theta)$ term.
    • We will be left with a normalized normal to the triangle.
  • Note that $a \times b = - (b \times a)$
  • So the "order" of the points makes a difference.
    • We need to specify all vertexes for all triangles in either a clockwise or a counter-clockwise direction.
    • We also know "where" we are looking
      • This is called a "look at " vector.
      • We are looking from (0,0,0) to (0,0,1) in the basic camera
      • We will specify the lookat vector later

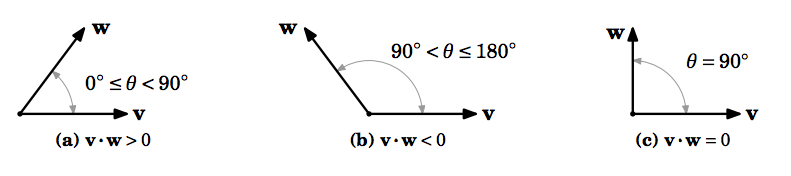

  • The dot product of two vectors
    • $a \cdot b = a_1b_1 + a_2b_2 + a_3b_3$
    • $a \cdot b = |a||b| cos (\theta)$
    • Where $\theta$ is the angle between a and b.
    • Remember for angles between -90 and 90 cos is positive.
    •
  • So the if the dot product between a surface normal and the lookat vectors are positive, we can see the front face.
  • If they are negative we can not see the front face.
  • In *GL
    • The engine will
      • Tell the fragment shader the "face" of a triangle the pixel we are looking at is on.
      • The variable gl_FrontFacing is a boolean
        • True if the pixel is on a front face.

        • if (gl_FrontFacing) {
              // front face, draw it with the face color
              gl_FragColor = f_Color;
          } else {
              // back face, draw it gray
              gl_FragColor = vec4(0.5, 0.5, 0.5, 1.0);
          }

    • Remove any triangles we don't want to see.
      • This is an option that must be turned on.
        • use gl.enable(gl.CULL_FACE)
          • reference
        • it can be turned off with gl.disable(gl.CULL_FACE)
      • We use g.cullFace(mode)
      • And we can specific the face to "cull"
        • gl.FRONT
        • gl.BACK
        • gl.FRONT_AND_BACK

      •     ChangeFace(value) {
               switch(value) {
                  default:
                  case '0':
                      this.gl.enable(this.gl.CULL_FACE);
                      this.gl.cullFace(this.gl.BACK);
                      break;
                  case '1':
                      this.gl.enable(this.gl.CULL_FACE);
                      this.gl.cullFace(this.gl.FRONT);
                      break;
                  case '2':
                      this.gl.enable(this.gl.CULL_FACE);
                      this.gl.cullFace(this.gl.FRONT_AND_BACK);
                      break;
                  case '3':
                      this.gl.disable(this.gl.CULL_FACE);
                      break;
                }
            }
