Some Assembly

Notes

• This is based Jorgensen chapter 2 (digital page 22 if you wish).
• We understand that
  • The CPU performs computations
  • The memory holds data for/from those computations.
  • Memory is slow, the CPU is fast.
• So registers are temporary memory in the CPU
  • The X86 chip has 16 General Purpose Registers.
  • The first 8 have strange names (a,b,c,d, sp, bp, si, di)
  • The next 8 have better names (r8 - r15)

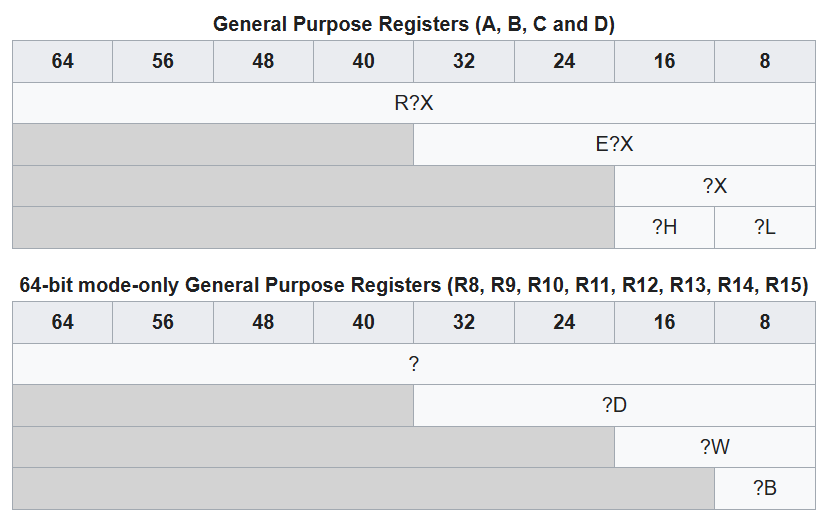

• These registers can be used for different sizes of data
  • The a register for example.
  • al is the bottom 8 bits
  • ah is the next 8 bits
  • ax is the bottom 16 bits
  • eax is the bottom 32 bits
  • rax is the full 64 bit register.
• From wikipedia.
• The 8086 had the first 8 registers
  • it was 16 bit, but ah and al were available
• From that we have inherited that
  • a word is 16 bits, 2 bytes, 4 hex digits
  • a double word is 32 bits, 4 bytes, 8 hex digits
  • a quad words is 64 bits, 8 bytes, 16 hex digits
  • and remember a byte is 8 bits, 1 byte or 2 hex digits.
• By the way, I use This Cheat Sheet constantly
  • For now, only use registers marked as "scratch" not "preserved"
  • We will discuss this, but not NOW.
• Declaring memory
  • The .data section is for initialized data
  • The .bss section is for uninitialized data
• Jorgensen gives a misleading table about data sizes
  • A char is always a byte, BUT CAN BE LARGER
  • A short is at least 16 bits, 2 bytes BUT CAN BE LONGER, and is at least as big as a char
  • A int is at least 16 bits, 2 bytes BUT CAN BE LONGER, and is at least as big as a short, and is 32 to 64 bits depending on the hardware and compiler
  • A long is at least 32 bits, 4 bytes BUT CAN BE LONGER, and is at least as big as a int, and is 64 to 128 bits depending on the hardware and compiler
  • To be safe use int16_t, int32_t and int64_t in modern c++
• When we declare data in the .data section
  • reference.
  • label[:] size_pseudo_op value[,value]
  • The size_pseudo_op is actually a pseudo instruction.
  • This is an instruction to the assembler that
    • Just sets up memory
    • Is turned into multiple or different instructions
    • Or some other edge cases.
  • In this case, it sets up memory.
  • The size_pseudo_ops are
    • db - byte, byte
    • dw - word, 2 bytes
    • dd - double, 4 bytes
    • dq - quad, 8 bytes.
  • Hex constants in NASM
    • Either 0xdddd
    • or 0dddh
    • or 0dddH

  • section .data
        myByte: db 0xFE
        myOtherByte: db 0A5H
        myOtherOtherByte: db 5Ah
        myWord: dw 0xA50F
        myDouble: dd 0x12345678
        myQuad: dq 0x123456789ABCDEF
        phrase: db "This is a phrase",0

  • We will be back to visit this again, but I want to get programming
• Start a new program
  • Add these constants to your code.
• Review how to compile
• The mov instruction
  • This is discussed in chapter 7 of Jorgensen, digital page 86
  • Again this is just a start
  • mov dest, src
    • Move data from the source to the destination
    • The src can be
      • literal constant
      • a memory address
      • the contents of memory
      • a register
    • The destination can be
      • a memory location
      • another register
      • BUT NOT: a literal constant
    • And we can not move from memory to memory.
    • And the source and destination should be the same size
    • We may have to specify size.
  • For now mov reg, [memory label] will do
• Let's move some data into a register
  • Again for now, let's restrict ourselves to the A register.
  • mov al, myByte
  • Compile it.
  • Run it
  • Did it work?
• The Gnu Debugger (gdb)
  • The GDB Cheat Sheet will be very useful.
  • Code needs to be compiled with -g
  • A collection of commands
    • break label, b label
      • could be label, line number
    • run
    • print /x $al or p
    • x /1xb &myByte
    • step, s, step and step into functions
    • next, n, step but don't step into functions
    • quit
• Add code to load each of the different types into register A and look at them.
  • You might need to scope with move rax, byte [myByte]
  • You might want to mov rax, 0 first.
