How passwords have changed

Notes

• A quick overview of passwords in unix
  • If you wish, Password Security: A Case History, Robert Morris and Ken Thompson, 1979
• Originally unencrypted/hashed passwords were stored in /etc/passwd
  • File permissions needed to be correct
  • Editors frequently make back up copies and these need to be secure
  • Nothing to prevent administrators from doing silly things.
  • Backups are problematic
  • Mistakes were very expensive to fix
    • Passwords wiped out, everyone had to reset
• Encrypt passwords
  • But reversing an encryption is a problem.
  • Remember, we want this automated
  • So the key must be stored.
  • And many encryption techniques are breakable
  • So the password was used as a key, and a constant phrase was encrypted.
  • Just decrypt with the password and see if the constant phrase was produced, the password was right.

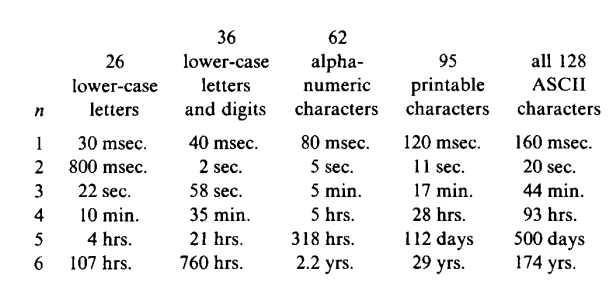

  • Back in the 70s, you could check a password every 1.7ms, or 1700 password a second.
  • Thompson does the calculation we did
    •
    • n = the number of letters in the password
    • So a brute force attack was feasible for many cases.
  • He also did a study on 3,289 passwords
    • 86% were easily guessable
    • We will look at this later.
• They tried a slower encryption algorithm
  • But machines get faster.
  • This is still used today, as we saw last time
• They added a salt (as we saw last time)
  • The salt was generated by looking at the system time.
  • They looked at the bottom 12 bits
  • This gave 2¹² = 4096 salts (as we saw in the man page)
  • The salt is stored as part of the password (as we saw last time)
• The salt
  • Each password needed a unique attack, but the salt is known
  • It becomes difficult to precompute all possible passwords (rainbow table)
• The original unix password hash was very weak
  • Only 8 characters of the password were used.
  • It relied on computation speed to partially maintain security
  • With a 2 character salt, there were only 4096 different crypts per password
  • And only 7 bits of this counted, ASCII
  • And only 11 characters in the hash (excluding the salt) or 2^13*7 possible hashes
  • The DES aglorithm was used, but special DES hardware was built.
    • We will eventually discuss DES and its problems.
• Over time multiple schemes have been introduced and discarded.
• Hash functions continue to be invalidated and new ones discovered.
• We will look at MD5 is some detail soon
• The hash was stored in /etc/passwd until the mid 80's
  • Since this file was public readable everyone could get the hash
  • And off site brute force attacks on a single hash
  • Moving passwords to a different file (/etc/shadow) is a control for this vulnerability
  • The password file needs to be readable by everyone
  • The shadow password needs to be readable by root (we will discuss this further)
