The MD5 Hash

Notes

• message digest algorithm
  • Produced in 1991 due to problems discovered with MD5
  • Ron Rivest
  • RFC 1321 is a reference
  • I am checking this against the wikipedia article.
  • And an arbitrary implementatin on gethub.
• This will take a message and produce a 128 bit HASH
  • It is used for password hashes and checksums
  • Discuss checksums
    • If the hash for a file is unique, the checksum will validate that file
    • It is common to get a file hash when you download software
    • See the Fedora 43 Download Site
  • If you are intereseted, there is a SEED lab on MD5 Collisions
    • This lab allows you to build two executables with the same signature.
    • And this will allow you to attack a machine by adding malicious code to a program that you redistribute.
    • I am afraid that this lab is a little outside the scope of this class.
    • But if you wish, I will set it up so we can run it.
• It is NOT cryptographically safe
  • In 1996 collisions were found,
  • In 2005 researchers were able to create fake documents with valid checksums
  • By 2008 it was completely broken.
  • But it is valid for our study.
  • Other algorithms use similar approaches.
• This algorithm operates at the bit level
  • Binary digIT, {0,1}
  • 8 bits are a byte
  • A word is a variable mesaurement, but here a word is 32 bits.
• Bit level operations
  • Addition
  • circular shift left 10011 << 2 = 01110
  • Bit wise and, or, xor, complement
• Messages to encode are in binary representation
• Messages are padded to be a multiple of 512 bits, but the last is 448 bits.
• Then the last 64 bits are used to store the message length.
• Consider "Hello World!"
  • This is 12 characters long
  • Each character is 8 bits long
  • So the message is 12x8 = 96 bits long.
  • It is padded with 448-96 bits or a 1 and 352 zeros
  • Then the binary representation of 96 is appended to the end
  • Hello World!10....0 00...01100000
    • The "Hello World!" is actually
    • ASCII: 72 101 108 108 111 32 87 111 114 108 100 33
    • Hex: 48 65 6C 6C 6F 20 57 6F 72 6C 64 21
    • Binary: 01001000 01100101 01101100 01101100 01101111 00100000 01010111 01101111 01110010 01101100 01100100 00100001
• Define
  • Four 32 bit values A,B,C,D
    • These are initialized to the arbitrary constants

      • A = 0x67452301
        B = 0xefcdab89
        C = 0x98badcfe
        D = 0x10325476

      • See line 76 here.
      • We don't really care about the values, we just need a constant starting point.
  • int K [64] (T in the RFC) is constructed from the sine table.
    • K[i] = sin(i) where i is in radians.
    • See line 362 here.
    • Again, we really don't care about the values, we just need some constant bit patterns for scrambling the bits
  • Functions : F,G, H, I (or F[0] - F[4], or FF, FG, FH, FI) depending on the context.
    • 3.4 Step 4 of the rfc
    • Line 294 of the code.
    • These are all implemented with binary operators available in c,c++
  • Define S[4][4] to be a set of shift amounts
    • S[0]: 7, 12, 17, 22
    • S[1]: 5, 9, 14, 20
    • S[2]: 4, 11, 16, 23
    • S[3]: 6, 10, 15, 21
• Split the message into 512 bit chunks and apply the following algorithm:

   initialize A,B,C,D to the starting values

   for each 512 bit chunk in the message
       ASave = A, BSave = B, CSave = C, DSave = D
       split the 512 bit chunk into 16 32 bit chunks, M[0] ... M[15]
       for j ← 0 to 4
           for i ← 0 to 16
              F = F[j](B,C,D)  + A + K[i] + M[i]
              A = D
              D = C
              C = B
              B = B + F << S[j][i]
       ASave = ASave + A, BSave = BSave + B ...
   return ASave append BSave append CSave append DSave

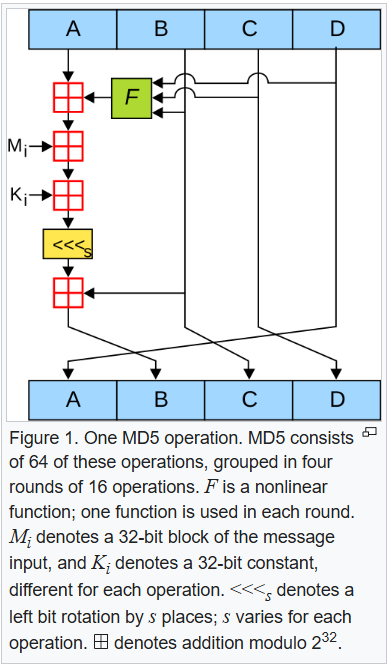

• Line 2 processes the entire message 512 bits at a time.
• The algorithm makes four passes over the block. (line 4)
• Then it processes each word in the block (line 6)
• Note that in the loop from line 6 - 12
  • D → A
  • C → D
  • B → C
  • A is permuted, shifted and combiend with the original message to become B
  • (From user Surachit CC BY_SA 3.0
